7499, also known as UNS A97499, is a high-performance aluminum alloy recognized for its excellent mechanical properties and strength-to-weight ratio. It conforms to international standards such as DIN 3.4354 and EN AW-7499, ensuring quality and reliability in various applications.

7499 is specifically designed for applications that require high strength, fatigue resistance, and toughness, making it suitable for aerospace and military applications, among others.

7499 Sheet | Plate

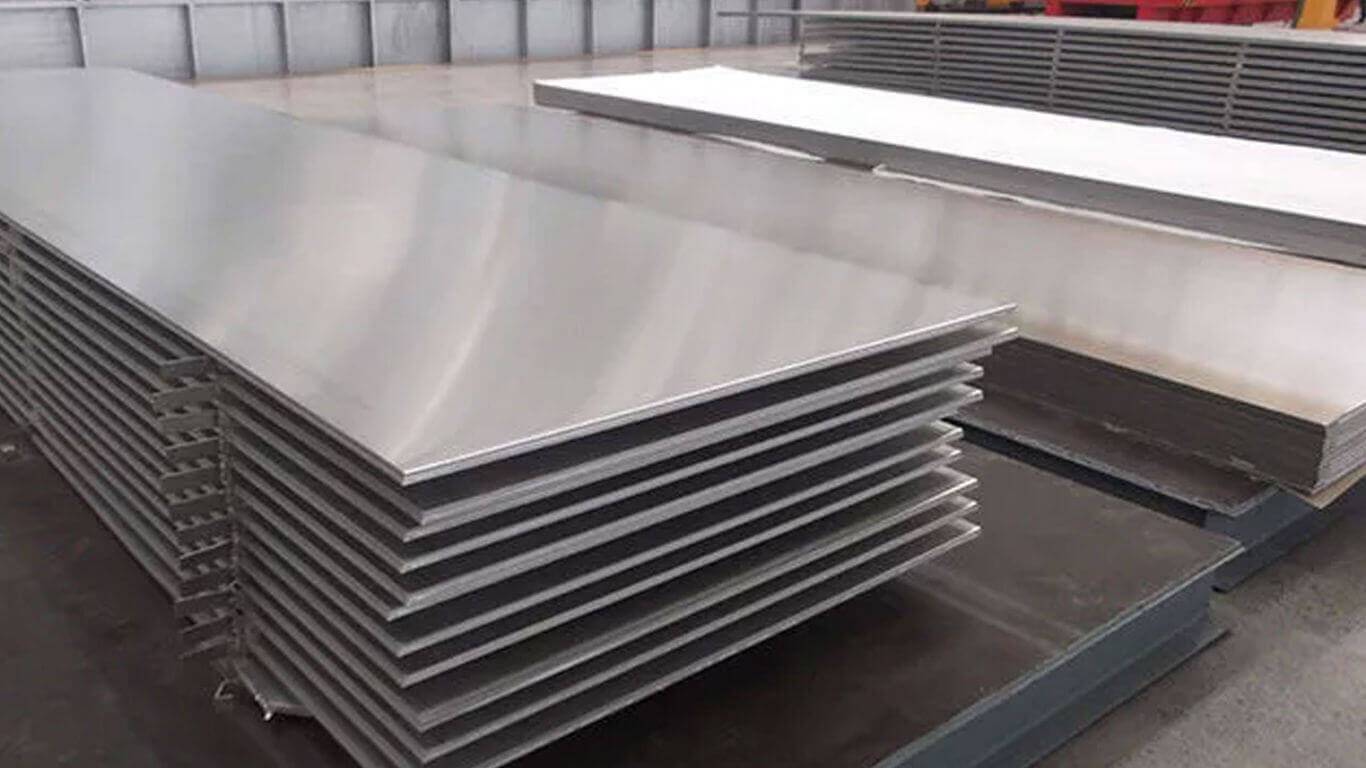

7499 sheets and plates are available in a variety of thicknesses and dimensions. These materials are essential for high-stress applications in the aerospace sector, where weight reduction and strength are critical.

7499 Round Bar | Rod

7499 round bars and rods are offered in various diameters and lengths. These products are crucial for precision machining and manufacturing components that must endure significant mechanical loads.

7499 Strip | Coil

Available in strips and coils, 7499 is suitable for applications requiring lightweight yet high-strength materials. These forms are often used in aerospace components and structural applications.

7499 Applications

• 7499 is extensively used in aerospace applications, including airframe components, wing structures, and fuselage elements due to its high strength and low weight.

7499 Properties

• Tensile Strength: Approximately 590 MPa
• Density: About 2.83 g/cm³, providing a favorable strength-to-weight ratio for demanding applications.
• Thermal Conductivity: Roughly 130 W/m·K
• Corrosion Resistance: 7499 has good corrosion resistance, particularly when anodized, enhancing its durability in various environments.

Machining 7499

• Cutting: 7499 can be cut using high-speed steel or carbide tools. Water jet or laser cutting is recommended for precise cuts.
• Drilling: Utilize carbide or cobalt drills for drilling 7499. Proper cooling and lubrication are crucial to maintain tool life and accuracy.
• Turning: Carbide inserts are preferred for turning 7499. Consistent cutting speeds and adequate cooling are essential for optimal results.
• Milling: Milling operations should employ carbide end mills with sufficient cooling to manage heat and maintain precision during processing.
• Grinding: For grinding 7499, use diamond or CBN wheels to achieve precise tolerances and a high-quality surface finish, with adequate cooling to prevent overheating.

Chemical Composition

• Zinc (Zn): Min 7.7%, Max 8.7%
• Magnesium (Mg): Min 1.6%, Max 2.2%
• Copper (Cu): Min 1.6%, Max 2.0%
• Chromium (Cr): Max 0.05%
• Iron (Fe): Max 0.15%
• Silicon (Si): Max 0.12%
• Titanium (Ti): Max 0.06%
• Manganese (Mn): Max 0.10%
• Aluminum (Al): Balance
